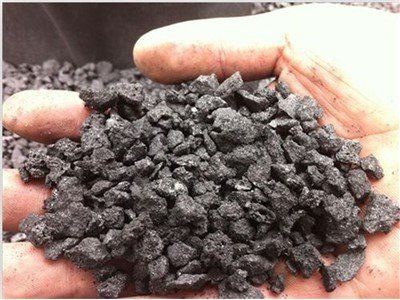

Low Calcium Inoculant Ferro Silicon
Compared with conventional ferrosilicon inoculants, this grade is produced with tighter control of calcium content. It is used in production environments where inoculation consistency, slag behavior stability, and process repeatability are more important than high reactivity.
Product Overview
Designed for Controlled Calcium Input and Stable Inoculation Performance in Automated Iron Casting Systems
Low Calcium Ferro Silicon Inoculant is a refined ferrosilicon-based inoculation material designed for gray iron and ductile iron foundries that require controlled calcium input during the inoculation stage.
Compared with conventional ferrosilicon inoculants, this grade is produced with tighter control of calcium content. It is used in production environments where inoculation consistency, slag behavior stability, and process repeatability are more important than high reactivity.
In modern automated molding and continuous casting systems, it is commonly selected to support stable metallurgical response under long production cycles.
Technical Specifications & Chemical Composition
Chemical composition is controlled within defined industrial ranges to ensure batch consistency.
|
Element |
Standard Low-Ca Grade |
Ultra-Low Ca Grade |
Controlled Range |
|
Silicon (Si) |
72% – 75% |
74% – 78% |
Adjustable |
|
Calcium (Ca) |
≤ 0.80% |
≤ 0.20% / ≤ 0.30% |
±0.05% control target |
|
Aluminum (Al) |
≤ 1.50% |
≤ 1.00% |
Optional control |
|
Carbon (C) |
≤ 0.10% |
≤ 0.04% |
Controlled |
|
Sulfur (S) |
≤ 0.02% |
≤ 0.01% |
Controlled |
|
Phosphorus (P) |
≤ 0.03% |
≤ 0.02% |
Controlled |
Particle Size & Application Compatibility
Particle sizing is matched to different inoculation systems to support stable dissolution behavior.
In-stream inoculation: 0.2–0.7 mm / 0.5–1.0 mm
Ladle inoculation: 1–3 mm / 3–8 mm
Automatic dosing systems: 3–10 mm / 5–15 mm
Particle distribution is controlled to reduce excessive fines and support consistent feeding behavior in automated systems.
Metallurgical & Operational Considerations
Low Calcium FeSi is not designed to increase inoculation intensity, but to support more stable process behavior under controlled production conditions.
Typical observed effects in industrial use include:
• More stable graphite nucleation behavior under consistent process conditions
• Reduced variation in inoculation response in long casting cycles
• Improved flow stability in some automated pouring systems
• More consistent hardness distribution across batches
• Improved casting consistency in thin-wall and complex geometries
Actual results depend on base iron composition, inoculation timing, and furnace conditions.
Key Industrial Applications
This material is commonly used in foundries where process stability is a primary requirement:
Automotive castings (engine blocks, brake components, housings)
Hydraulic systems (pump bodies, valve components)
Ductile iron pipe production and continuous casting lines
Heavy equipment structural castings
Wind power and large-scale iron components
High-volume automated foundry production systems
Low Calcium vs Standard Ferrosilicon Inoculant
|
Aspect |
Standard FeSi |
Low Calcium FeSi |
|
Calcium behavior |
Higher variation |
Controlled input |
|
Slag response |
Process dependent |
More stable under controlled conditions |
|
Application focus |
General use |
Automated & continuous production |
|
Consistency |
Batch dependent |
Improved repeatability focus |
Foundry Application Guidelines
Typical addition rate: 0.10% – 0.30%
|
Method |
Recommendation |
Notes |
|
In-stream inoculation |
Recommended |
Best for late-stage inoculation control |
|
Ladle inoculation |
Suitable |
Requires controlled timing |
|
Automatic feeders |
Suitable |
Requires stable particle grading |
The optimal dosage should be determined through plant trials based on melt chemistry and casting requirements.
Manufacturing & Quality Control
Production is carried out under controlled metallurgical conditions to maintain chemical stability across batches.
Quality control includes:
Raw material selection based on impurity control requirements
Electric arc furnace smelting with monitored calcium adjustment
Chemical analysis using Optical Emission Spectrometry (OES)
Periodic ICP verification when required by customer specifications
Particle size screening to control fines distribution
Moisture-controlled packaging for transportation stability
Full batch traceability system for industrial customers
Third-party inspection (SGS, BV, TÜV) can be arranged upon request.
Certificate
Packaging & Logistics
25 kg moisture-resistant multi-layer bags on export pallets
1.0 MT / 1.25 MT jumbo bags (FIBC)
OEM labeling and barcode tracking available
Designed for long-distance ocean transportation and industrial handling systems
FAQ
Q: What is Low Calcium Ferro Silicon used for?
A: It is used as an inoculant in gray iron and ductile iron production to provide controlled calcium input and support stable graphite nucleation under industrial casting conditions.
Q: Why is calcium control important in ferrosilicon inoculants?
A: Because calcium behavior in molten iron is highly process-dependent. Uncontrolled variations may influence slag behavior and inoculation consistency in some production systems.
Q: How is Low Calcium FeSi different from standard ferrosilicon?
A: It is produced with tighter calcium control and is typically used in automated or continuous casting systems where process stability is a priority.
Q: Can Low Calcium FeSi reduce casting defects?
A: It may help reduce process-related variations such as inconsistent inoculation response or slag behavior. Final casting quality depends on overall foundry conditions.
Q: What is the recommended addition rate?
A: Generally 0.10%–0.30%, depending on melt chemistry, inoculation method, and casting type.
Q: Is it suitable for automated dosing systems?
A: Yes. It is available in controlled particle sizes suitable for automatic feeding and in-stream inoculation systems.
Q: Can calcium content be customized?
A: Yes. Calcium levels can be adjusted within controlled industrial ranges depending on application requirements.
Q: How is product quality controlled?
A: Each batch is tested using OES analysis, particle size screening, and traceable production records. Third-party inspection is available upon request.
